CAMSAT - CDS-Lift IP

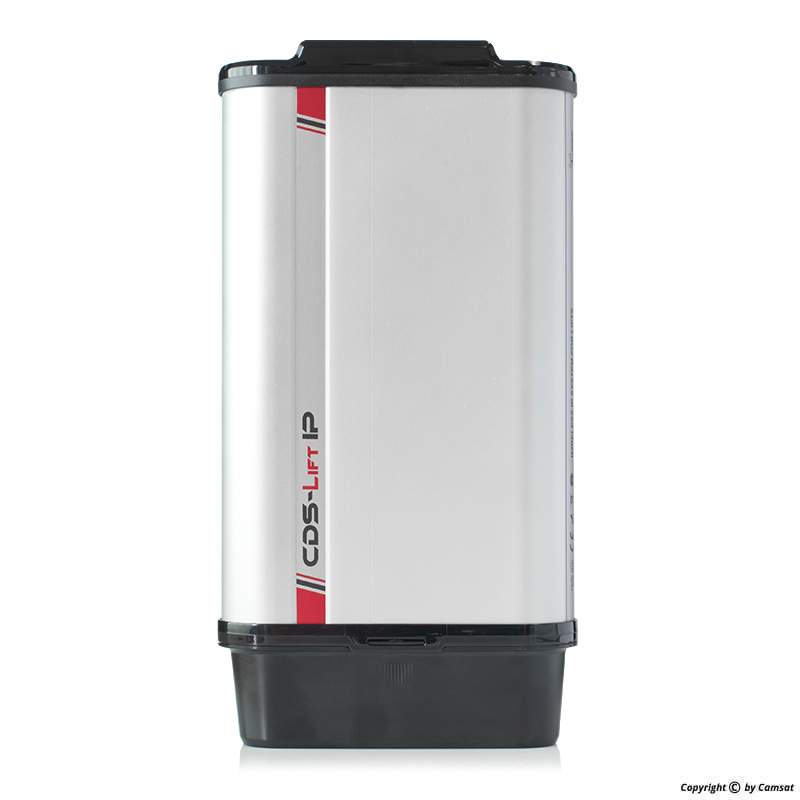

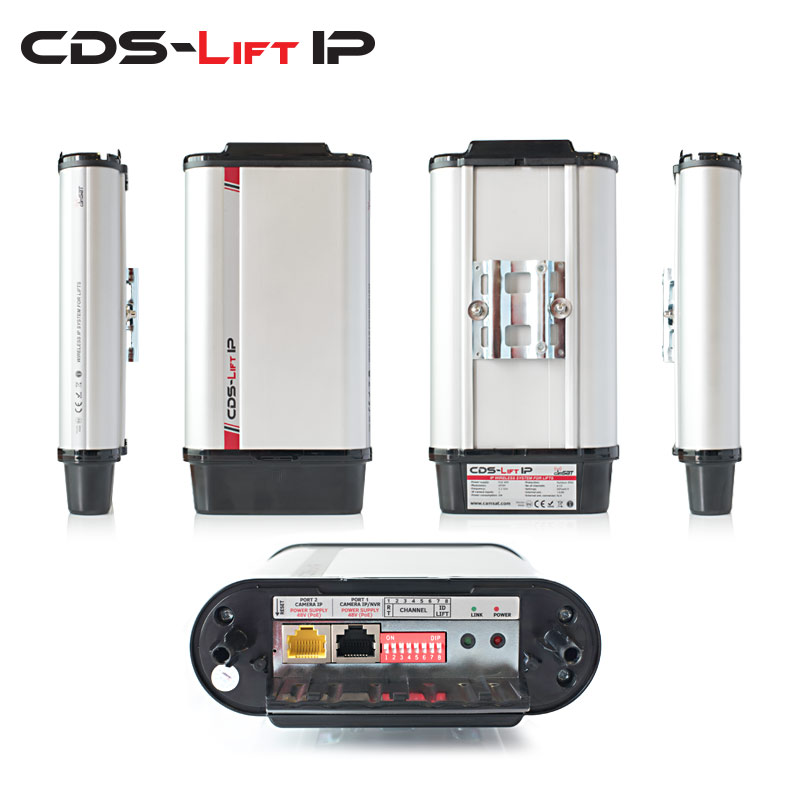

CDS-Lift IP (set = 2 pcs) - Wireless set for the elevators and cranes

Set for a lift including a wireless transmitter and receiver for IP cameras.

NOTE: One receiver allows simultaneous reception from two transmitters. Optical visibility LOS of antennas is required.

• Operating modes: Cab (transmitter) / Receiver

• Inputs: for 2 IP cameras (Ethernet 10 / 100Mbps RJ45) or NVR

• Range: 250m (in the shaft), 500m (in free space)

• Antennas: Integrated 14dBi directional antennas with an angle of 30 °

• IP cameras: 1- 8 megapixels (all types of IP)

• Frequency: 5,2GHz (CE) and 5.8 GHz (FCC)

• Modulation: Digital OFDM

• Coding rate: 128bit WPA

• The number of operating channels CE: 2 channels

• Housing: IP55

• Power supply: 48V PoE

Included:

• The radio module x 2 pcs.

• The AC plug 230V AC / 48V PoE x 2 pcs.

• U-bolt x 2 pcs.
