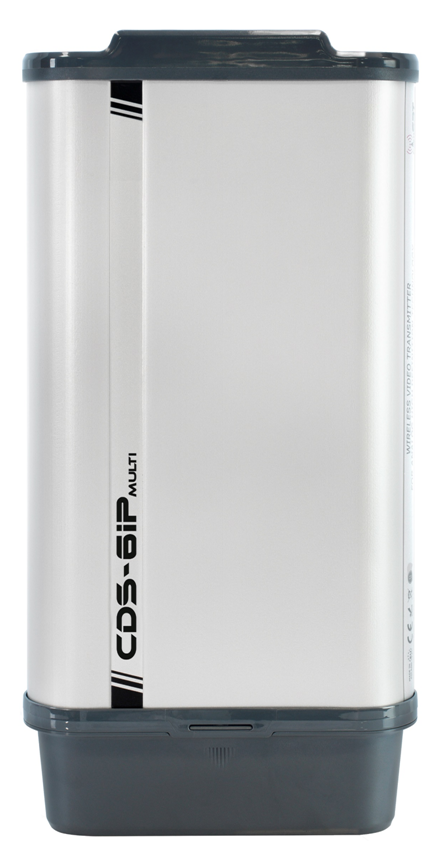

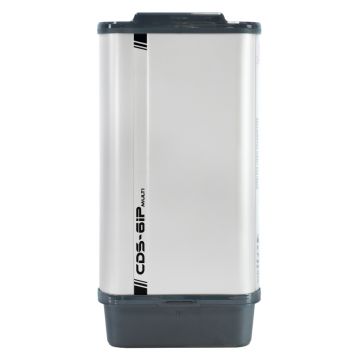

CDS-6IP multi - The wireless system with 4 inputs for IP cameras HD and 4K.

The radio system in a hermetic housing for wireless transmission of audio-video from 4 IP cameras with PoE HD and 4K. It has 4 LAN inputs with PoE for IP cameras. All LAN ports provide PoE (48V) standard 802.3af. The possibility to power with low-cost buffer power supply 12V DC. Very simple system configuration iCAMSAT-OS. The setting of only two parameters ensures launch of radio link.

BASIC PARAMETERS:

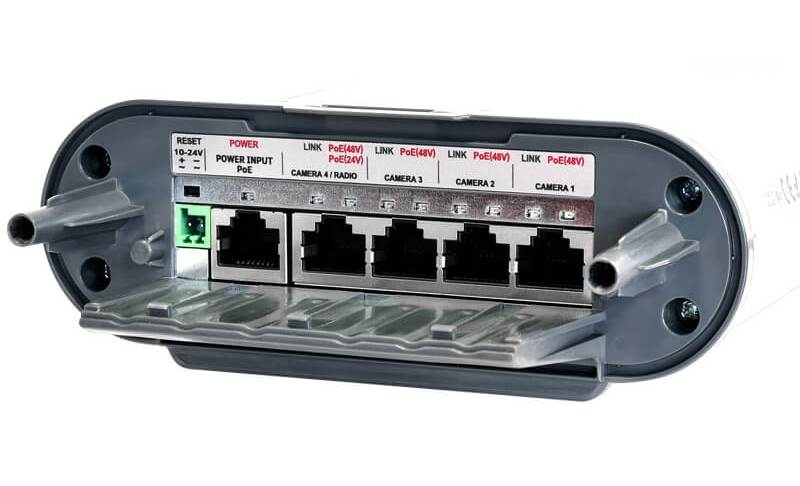

• 4 LAN ports for IP cameras

• range of more than 2km

• 16 operating channels 5GHz CE

• internal directional antenna 14dBi with an angle of 60 ° operation,

• the possibility of mutual series connection by Ethernet cables for multiple receivers on a single mast, for example: A receiver with the receiver B, B receiver  with C, C with D, D receiver to  NVR.

• 4 x PoE (15.4W each)

• ​​Ethernet speed 10 / 100Mbps

• wide voltage supply range:

    • Power supply 10-48V DC / AC (PoE Uout = 48V DC)

    • PoE Uout = Uinput PoE (10 ÷ 56V DC)

• PoE type  - Passive PoE (4,5+) (7,8-)

• the length of cables with PoE: 100m

• automatic fuses on each PoE port

• optical indicator fo transmission LINK and power for each port

• operating temperature: -20 ° C to +55 ° C

• modern outer casing IP65

• dimensions: 140mm (W) x340mm (H) x60mm (L)

• Note: The kit does not include power supply. Dedicated power supply dependent on the power of cameras:

    • 12V 2.5A (for cameras with a total power consumption of less than <24W), for example. 4 cameras 6W,

    • 12V 6A (for cameras with a total power consumption of less than <70W), for example. 4 cameras 15.4W,

    • 48V 1.5A (15.4W camera x4)

    • PoE

• Other wireless parameters as the CDS-6IPeco

Included:

• Unit CDS-6IP Multi x1pc.

• holder for pipes / clamp to the mast x 1 pc.

• manual, certificate
