CAMSAT - WCT-02h

WCT-02h - Wireless module for the wireless remote control and receiver executive of I / O ports in a single device, enabling remote control within a radius of 3km.

WCT-02h functions as a wireless transmitter and receiver control with a range of 3km.

SPECIFICATIONS:

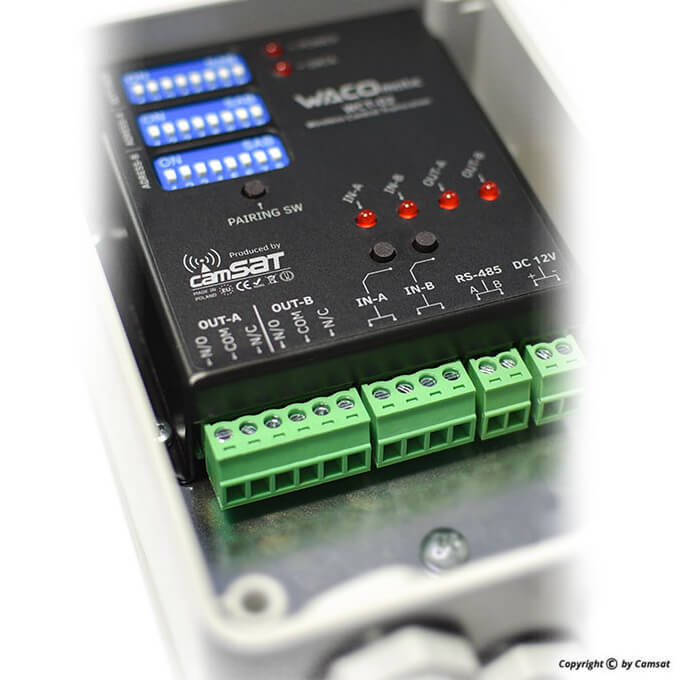

• Two potential-free inputs,

• Two relay outputs NO / NC rated at 4A / 12V, 1A / 230V,

• Two modes of relays: bistable and astable,

• the possibility of switching relays keyboard Camera PTZ protocol PELCO-D / P, or any DVR / NVR

• Built-in Wireless + wired RS485 interface,

• the ability to work in two modes:

     • unidirectional (operating point-to-multipoint, one entry synchronized with multiple outputs modules WCT-02

     • bi-directional (operating point-to-point, two-way communication with confirmation of execution of the order)

• encrypted transmission 64-bit key code

• additional RS485 interface (function radio modem)

• range 3km

• operating frequency: 869MHz band (free, not licensed)

• 12V / 1A,

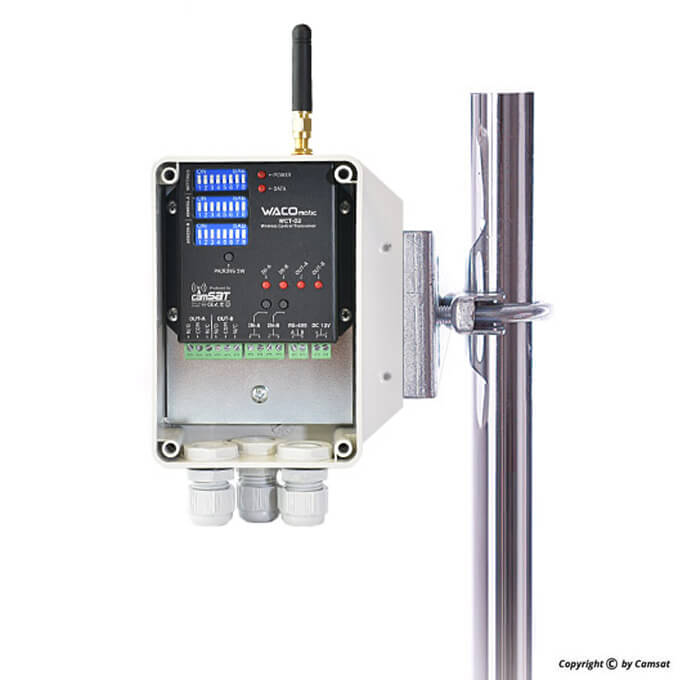

• hermetic IP65

• acts as a wireless remote control with confirmations execution of orders

APPLICATION EXAMPLE:

• to send two control signals and receive wireless signals two NO / NC are needed: the WCT-02h x 2 pcs.

• 6 to drive the signals and receiving signals 6 NO / NC are needed: the WCT-02h x 6 pcs.

• in order to control signals 10 and 10 receive the signal NO / NC are needed: the WCT-02h x 10p

Set contains:

• module WCT-02H x 1 pc,

• omnidirectional antenna mini x 1 pc. .

• manual, declaration of conformity
