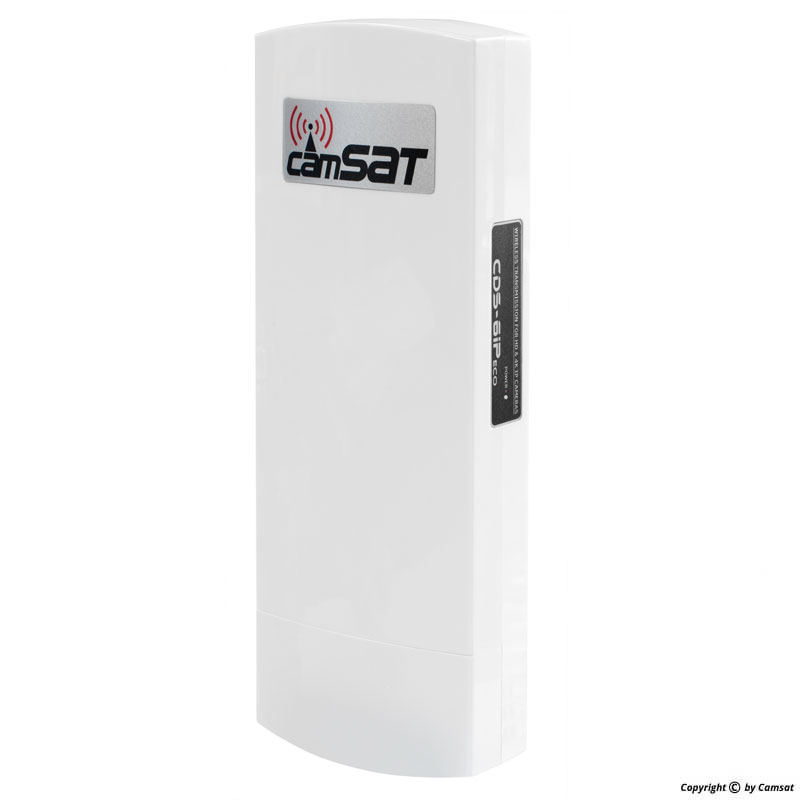

CAMSAT - CDS-6IP eco

CDS-6IP eco - The hermetic radio module for wireless transmission of audio-video from IP cameras in HD and 4K; It allows you to connect two cameras to each unit, and the connection of up to 4 transmitters to one receiver. Very simple, specific system configuration iCAMSAT-OS. The setting of only two parameters ensures launch of radio link.

BASIC PARAMETERS:

• 2 LAN for IP Cameras

• range 2km

• 16 operating channels 5GHz

• internal antenna directional 14dBi with an angle of 60 ° operation,

• PoE 12-24V / 1A DC and 12V DC (DC power jack 2.1 / 5.5mm)

• Power PoE48V (IEEE802.3af): Yes with an additional module poer-24 or poer-24

• antenna connectors for external antenna - NO

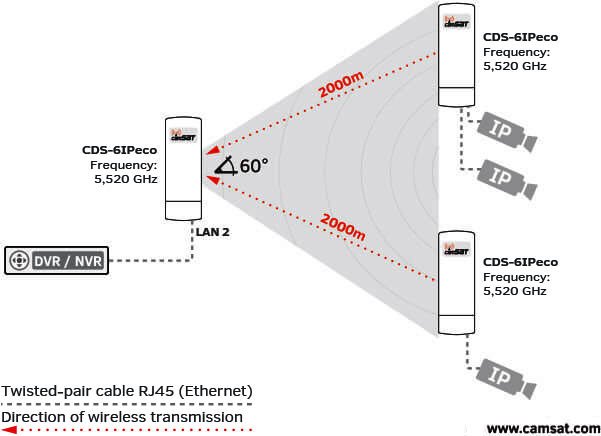

• the possibility of mutual series connection by Ethernet cables  of multiple receivers on a single mast for example. Receiver A with the receiver B, the receiver B with C, C to receiver/NVR.

Included:

• unit CDS-6IPeco x1

• holder for pipes / clamp to the mast x 1 pc.

• Power supply PoE24V x1szt.

• manual, certificate
